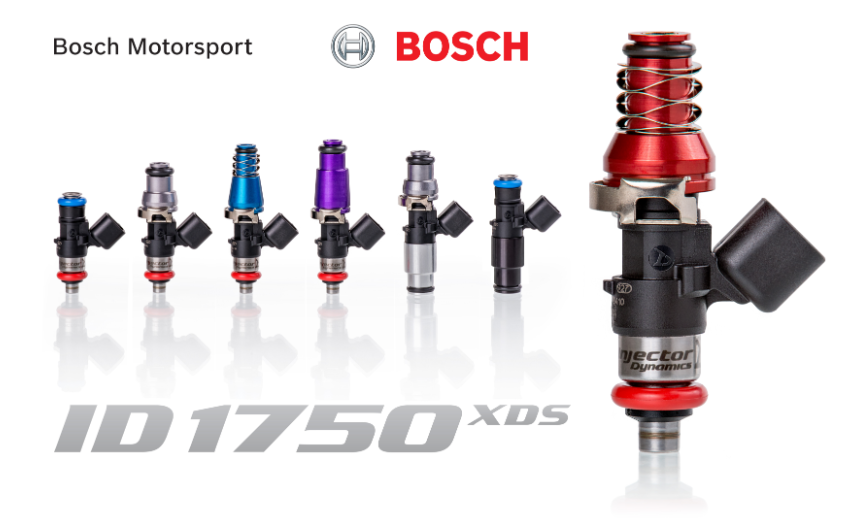

Injector Dynamics ID1750x Fuel Injectors | 2008-2015 Mitsubishi Evo X

2008-2015 Mitsubishi Evo X ID1750x Fuel Injectors by Injector Dynamics

The ID1750x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. Like the ID1700x, the ID1750x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.

A unique magnetic circuit, resulting from a lengthy development program, makes the ID1750x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1750x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.

The ID1750x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

Features

• Nominal Flow Rate – 1728cc/min @ 3.0 Bar (43.5 psi) Using E10 Emissions Certification Fuel at 49 Degrees C (120F)
• Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
• Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels
• Electrical Connector – USCAR

Benefits

• Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
• Does not require extended linearity at low flow rates
• Narrow Spray Pattern – minimal wall wetting promotes quick response and smooth running.
• Both Dodge Neon and Caliber SRT-4 injectors are direct fit plug and plug, no additional adapter needed. All others will require a set of either PnP adapter 91.2 or 91.3 in order to plug and play.
• The ID1750 will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.

Applications

• 2008 – 2015 Mitsubishi Evolution X

What’s in the box?

• 1 Set – ID1750x Fuel Injectors

Warranty

• Manufacturer Standard Warranty
