Evo X & Ralliart Catch Can / Coolant Expansion Tank by MAPerformance | 2008-2015 Mitsubishi Evo X

MAPerformance Catch Can for the Evo X is a full vent to atmosphere catch can designed to eliminate this crankcase pressure. Venting the crankcase properly makes seals & gaskets last longer and reduces oil accumulation in intercoolers and intake piping to ensure your intercooler is operating at an optimal level. It also reduces the resistance against your pistons and is able to free up some hp that your factory system robs you of.

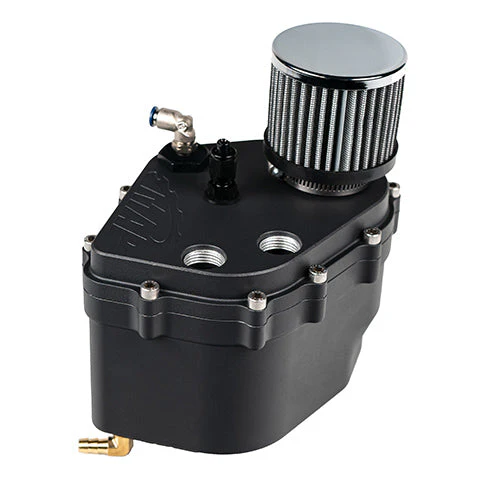

Our sleek cast design replaces your plastic coolant overflow tank and doubles as your coolant overflow tank and catch can, all with an easy single bolt install.

Evo X Catch Can / Coolant Tank Features

• Single bolt-in design with no major modifications or special tools needed for install
• Sleek cast aluminum design with shared factory level coolant overflow tank

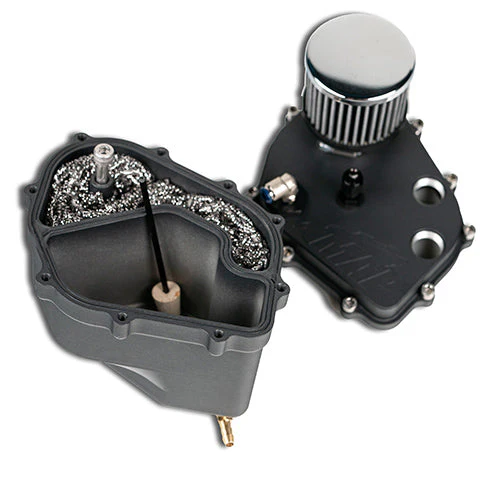

• Built-in level float for easy to check coolant level
• High-Quality Squirrelly Performance fittings and lines included
• -10AN lines for reduced airflow velocity
• Drain kit available for easy emptying of the system with no hassle or specialty tools needed
• 100% Direct Fit
• Assembled in the USA

Evo X Oil Catch Can Benefits

• Relieves damaging crankcase pressure
• Improved life of seals and gaskets
• Reduces oil coating the inside of the intercooler and piping
• Frees up hp from relieving crankcase pressure

Applications

• 2008 – 2015 Mitsubishi Evolution X (All valve cover options included with every kit)

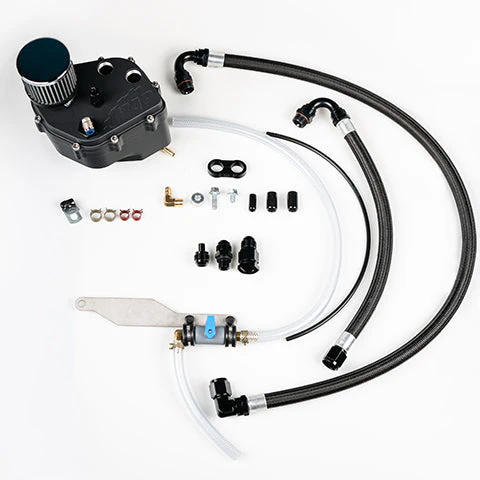

What’s In The Box?

• 1 – -10 AN Line (Short)
• 1 – -10 AN Line (Long)
• 1 – Assembled Evo X Catch Can Coolant Expansion Tank
• 2 – 12mm vacuum caps
• 1 – 10mm vacuum cap
• 1 – 12mm spring clamp
• 1 – Clamp on filter
• 1 – 2ft 5/16 coolant hose
• 1 – Vent Cap with Drain Hose and Mounting Clamp
• 1 – Catch Can Combo Tank Lid
• 1 – Catch Can Combo Tank Body

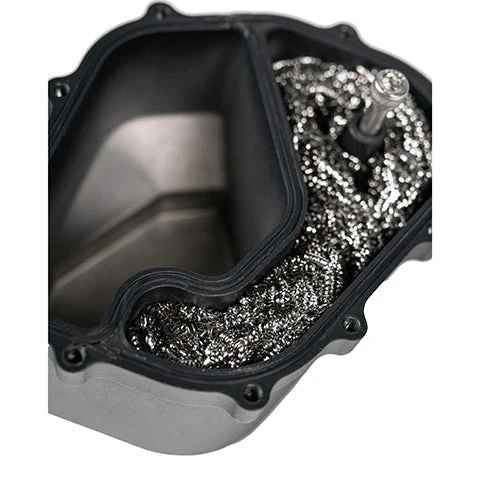

• 2 – Stainless Filler for tank
• 1 – M8 Spring Lock Washer
• 1 – M8 Flanged Lock Nut
• 1 – M8x1.25x120mm Socket Head Bolt
• 9 – M6x1x20mm Socket Head Screws
• 1 – Cork/Carbon Tube Level Float
• 1 – Large O-Ring Stock
• 1 – 1/4″NPT to 5/16″ Barb Elbow
• 1 – 2ft Rubber Hose
• 1 – Vented Coolant Cap
• 1 – MAP Press in Valve cover fitting (Metal Valve Cover)
• 1 – MAP Thread on clamping Valve cover fitting (Plastic valve cover)
• 1 – MAP Threaded PCV Fitting (All Covers)
• 1 – -4AN Cap
• 1 – -4AN Bulkhead
• 1 – 1/4″ NPT Plug
• 1 – Drain Kit

References

• Catch Can Installation Instructions
• Drain Kit Installation Instructions
• Coolant Cap Update

Warranty

• MAP Limited Lifetime Warranty
